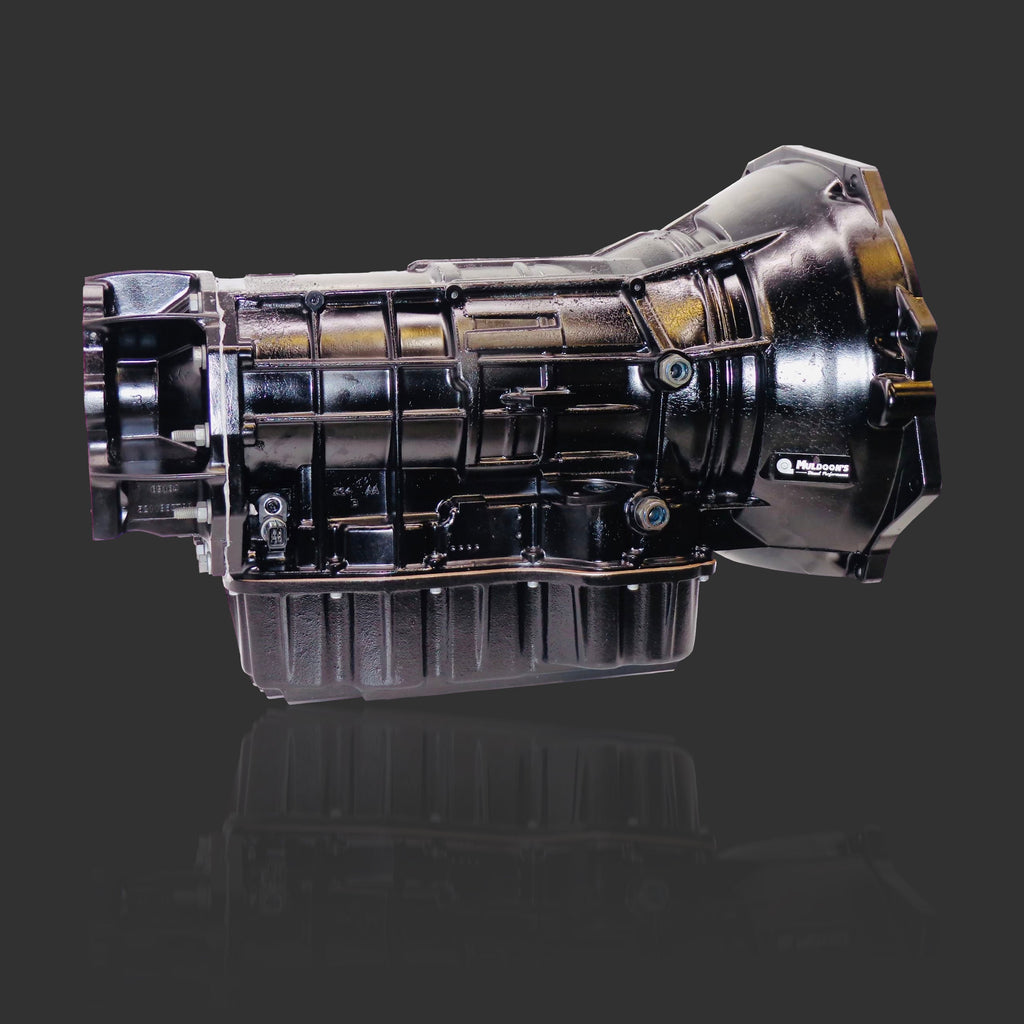

Stage 3 Specifications
- SFI spec 29.3 billet flexplate
- Goerend triple disc torque converter with billet cover
- Muldoon's rebuild kit with upgraded clutch packs
- Increased 2C clutch count
- Steel center support with additional 4C clutches
- Billet 2C apply piston
- Billet 4C retainer
- Billet input shaft with overdrive clutch direct oiling
- Billet aluminum overdrive drum with 18 clutch overdrive configuration
- Billet overdrive hub
- MPT valve body with upgraded solenoid switch valve
- Billet accumulators
- Upgraded accumulator cover with additional hardware
- Billet channel plate
- Rebuilt oil pump with updated TCC Limit, PR, TCC switch valves are checked and repaired to ensure hydraulic integrity
- New electronic solenoid pack
- Upgraded low/ reverse sprag (Roller Style)
- Tig-welded input planetary
- New speed sensors and line pressure sensor
- New pistons, bushings and bearings
- New MOPAR filters
- Deep pan
- Dynamometer tested for quality control
- Rated for Trucks Making up to 900 WHP
- If the truck does not already have one, a thermostatic bypass must be installed for an additional $109.00.
Calculated shipping rates at checkout cover one-way shipping only. Additional shipping charges will apply for the return shipment of the inbound core.
