Description

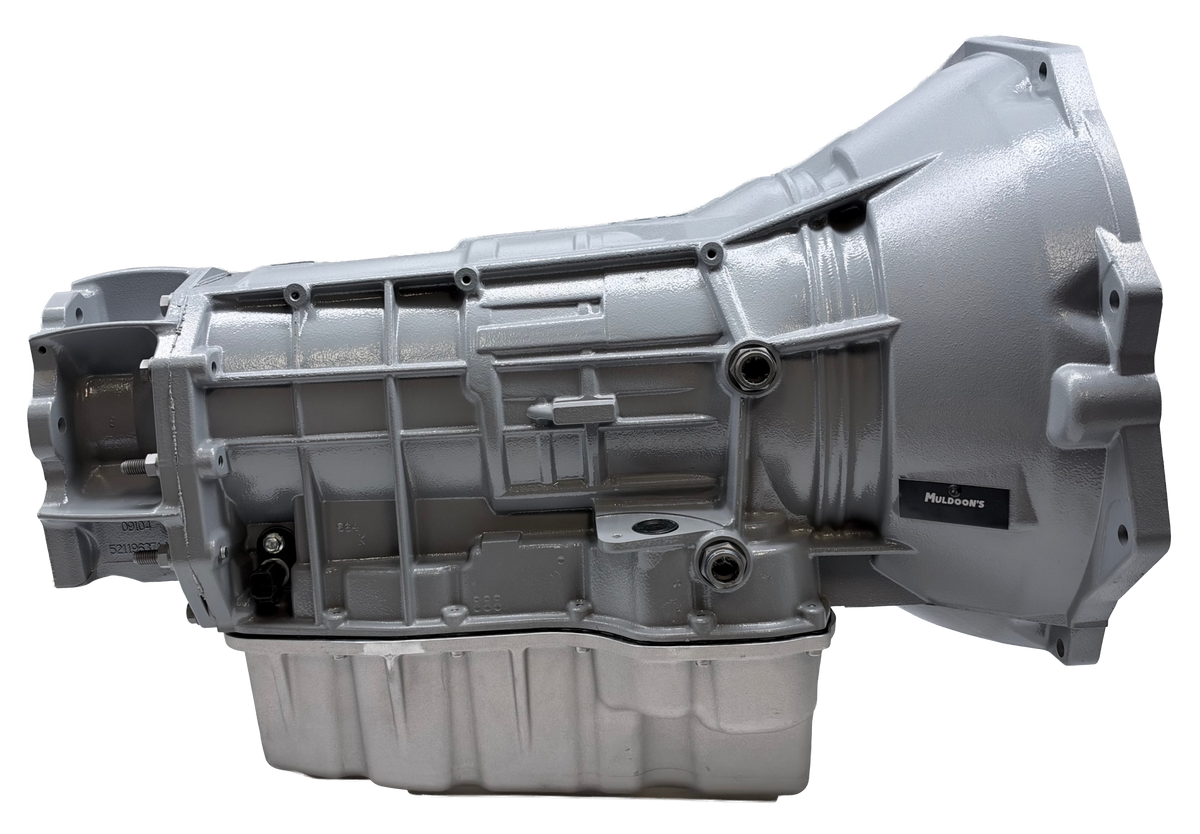

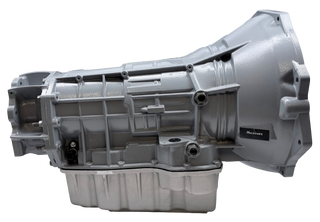

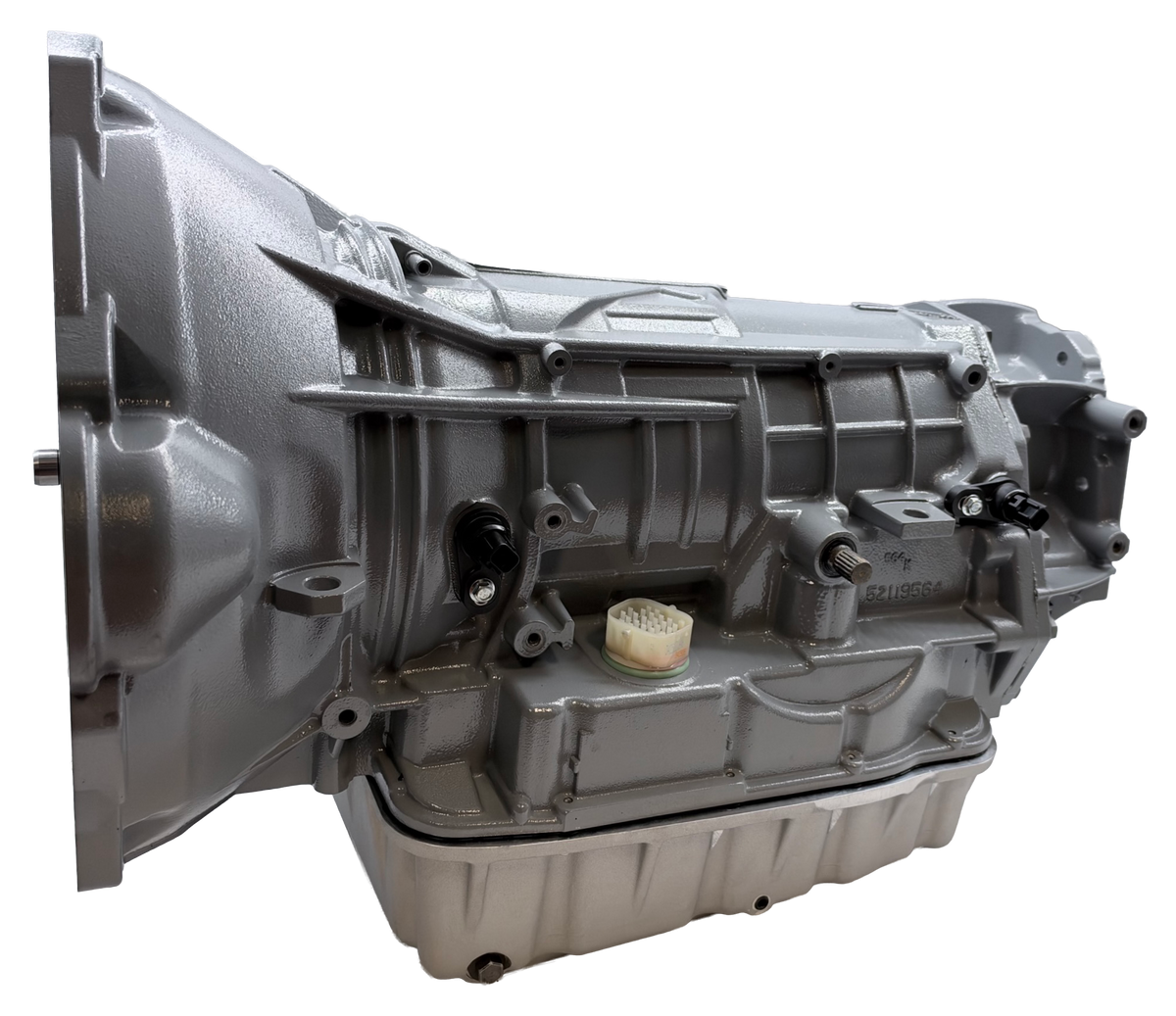

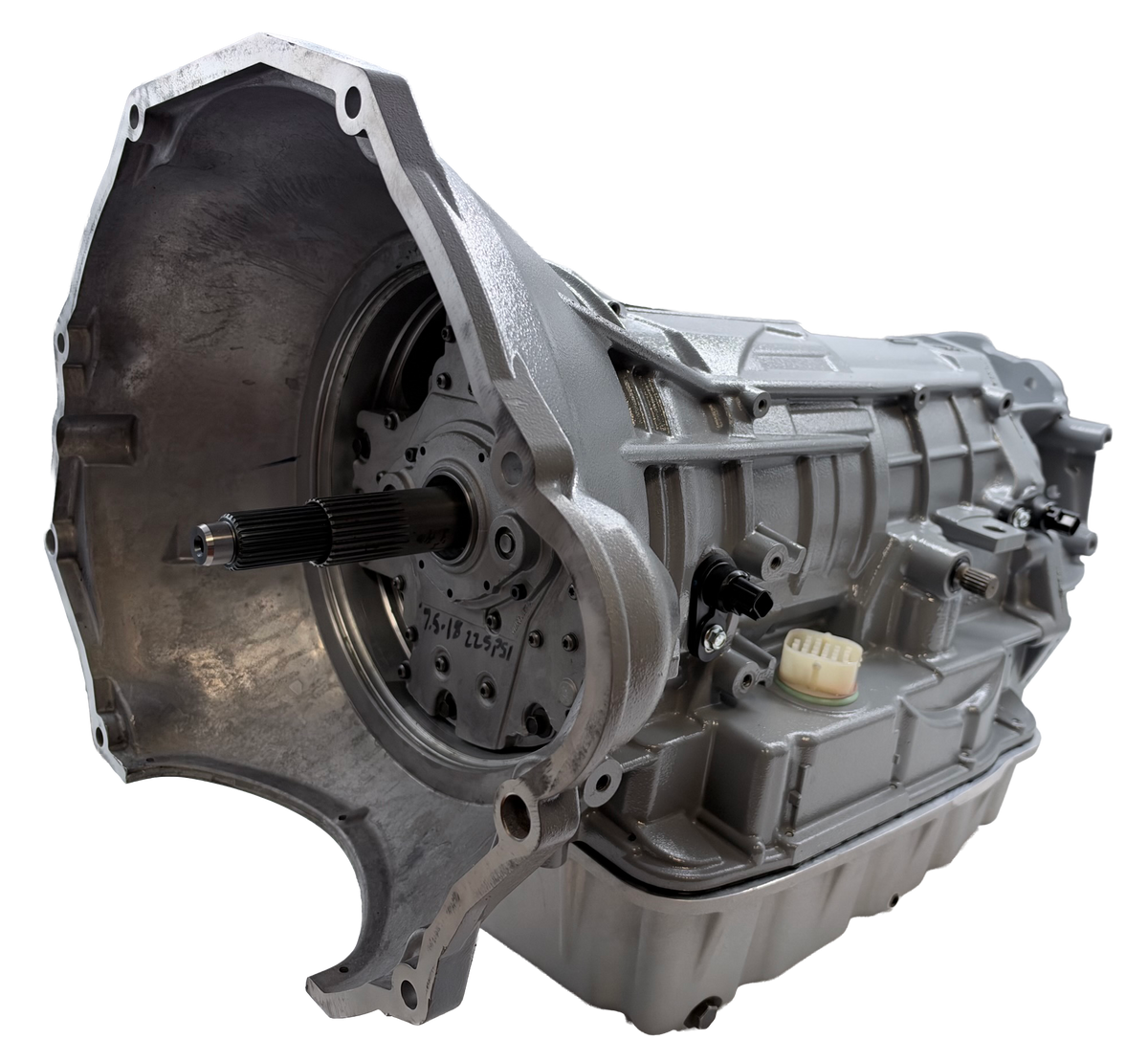

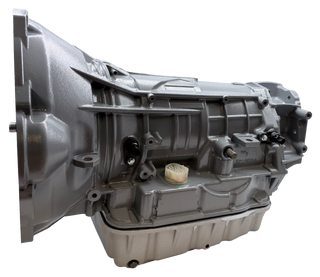

Stage 2 Specifications
- SFI spec 29.3 billet flexplate
- Goerend triple disc torque converter with billet cover
- MPT rebuild kit with upgraded clutch packs
- Suncoast billet 2C apply piston
- Billet 4C retainer
- Billet input shaft
- Billet aluminum overdrive drum with 16 clutch overdrive configuration
- MPT SauceBoss valve body with upgraded solenoid switch valve
- Billet accumulators
- Upgraded accumulator cover with additional hardware
- Billet channel plate
- Rebuilt oil pump with updated TCC Limit, PR, TCC switch valves are checked and repaired to ensure hydraulic integrity
- New electronic solenoid pack
- Upgraded low/ reverse sprag (Roller Style)
- Tig-welded input planetary
- New speed sensors and line pressure sensor
- New pistons, bushings and bearings
- New MOPAR filters
- Deep pan
- Dynamometer tested for quality control
- Rated for Trucks Making up to 700 WHP
- If the truck is not already equipped with a thermostatic bypass, one must be installed for an additional $109.00.
MPT installation is available for $1,500 and includes removal of the existing transmission, hot flushing of the transmission cooler and lines, installation of the MPT transmission, and transmission fluid. Contact us to check scheduled installation lead time before ordering. To schedule an installation time, a nonrefundable deposit of $500.00 is required.
Calculated shipping rates at checkout cover one-way shipping only. Additional shipping charges will apply for the return shipment of the inbound core.
Prior to purchasing, please review our 68RFE Pre-Purchase Instructions / Criteria
Click here to view our 68RFE Installation Instructions.
