Description
The TransGo TFRE-PRO Reprogramming Kit fits 1995 and newer Dodge and Ram vehicles equipped with 46RE, 47RE and 48RE automatic transmissions. It does not fit 1995-style valve bodies without the 3/16-inch checkball in the lower channel casting.
This kit is designed for aggressive street and performance applications with increased engine power. It includes valve body, servo and internal components calibrated for higher operating pressure in all forward gears. With maximum line pressure set to approximately 185 PSI, the kit can significantly increase the holding capacity of the clutch elements and torque converter clutch while retaining factory-style shift timing.
The patent-pending triple separator plate allows torque converter clutch operation in first through fourth gear on 46RE and 47RE-style valve bodies. Additional electronic control of the TCC solenoid is required for lockup operation in the lower gears and is not included.
The kit also improves converter charge, direct clutch feed and band release flow. Additional components address converter drainback, difficult Park disengagement, delayed pressure response and 2–3 shift overlap. This kit can be installed with the transmission in the vehicle, while the included internal sealing rings can be used when the transmission is removed for overhaul.
Corrects, Prevents or Reduces
- Torque converter clutch slip or shudder
- Torque converter drainback
- Soft shifts
- Second gear band failure
- Direct clutch failure
- 2–3 shift overlap
- Poor torque converter clutch engagement
- Low clutch and TCC holding capacity
Provides
- Up to 185 PSI line pressure in all forward gears
- Short, clean shifts
- Increased clutch and torque converter capacity
- Torque converter clutch control in second, third and fourth gears
- Optional first gear torque converter lockup
- Improved converter charge and cooling flow
- Faster line pressure response in forward and reverse

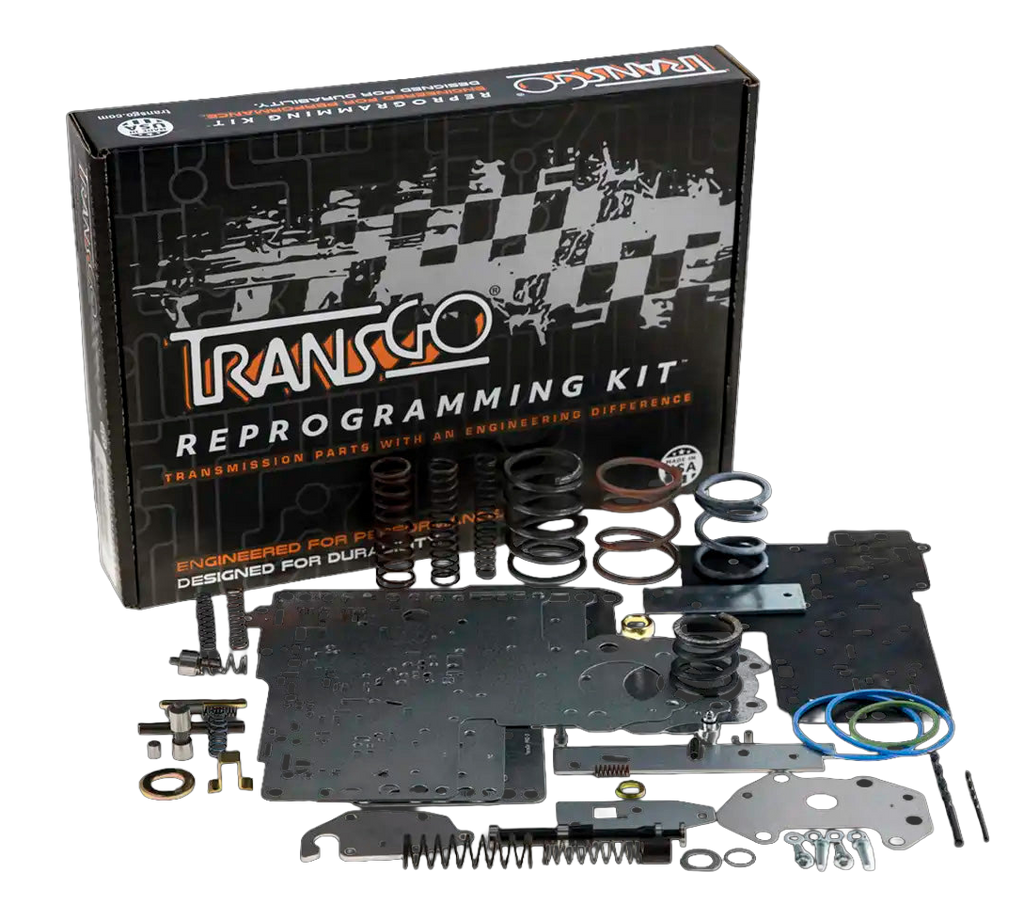

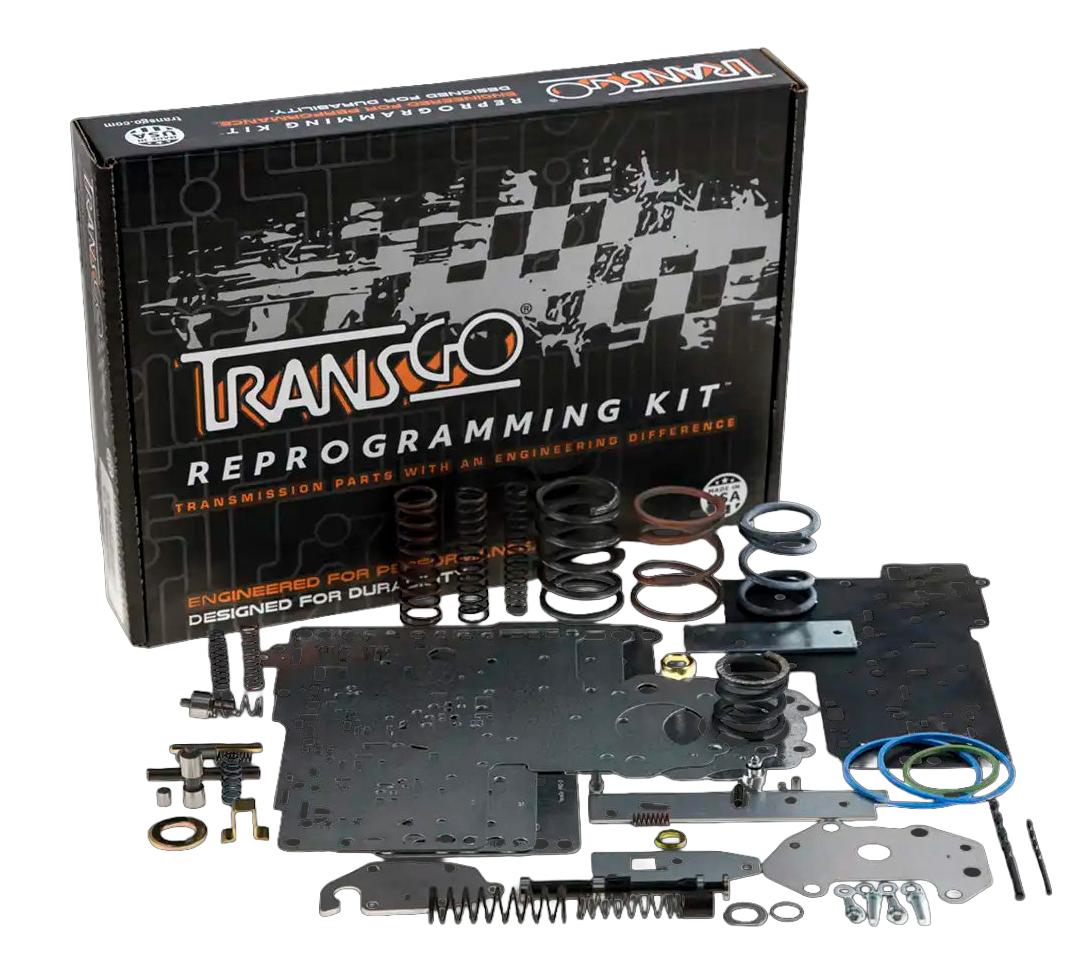

Kit Includes
- Three high-temperature, low-shrink sealing rings
- Lower 1–2 accumulator spring
- Front servo washer and optional spring for oversized aftermarket servos
- Rear servo springs, tapered spring and spacer
- Drill-guide plate, drill bit and drill-stop spacer
- Boost valve bracket
- Drop-in detent bore repair bullet and spring
- Detent spring and repair bullet installation tool
- Hardened steel manual valve with converter charge in Park provision
- Hardened TV valve, boost plug and tapered spring
- Part-throttle body transfer plate, pin, spacer and detent limit valve spring
- Hardened steel throttle valve and spring
- Patent-Pending Triple Valve Body Separator Plates
- Four Longer Hold-Down Plate Screws and Washers
- 3–4 Quick-Fill Valve Springs for Diesel and Gas Applications
- Three 3–4 Accumulator Springs
- Vented Accumulator Cover
- Accumulator Housing Plug
- Transfer Plate, Tapered Plug, Spring, Checkball, Limit Bushing and O-Ring
- Solenoid Body Plate
- Lower Valve Body Separator Plate
- Pressure Regulator Valve Shim, Spring Seat and Springs
- Three Drill Bits
This kit can be installed with the transmission in the vehicle. The included internal sealing rings are intended for use when the transmission is removed and disassembled for overhaul.
